Test Smarter, Not Harder – Lovibond® Spectrophotometers- Your Water Quality, Our Expertise!

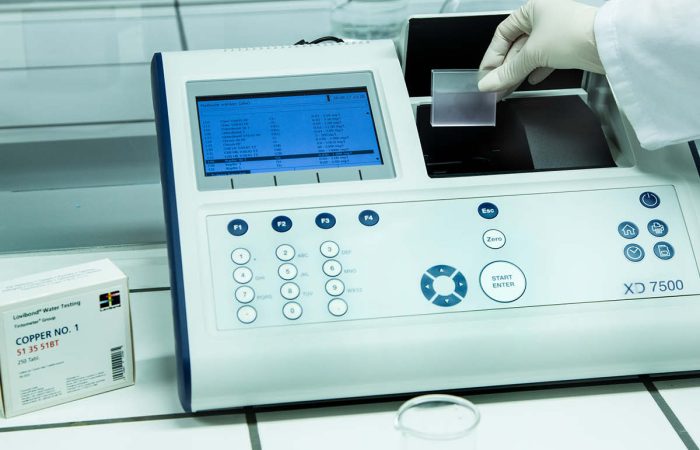

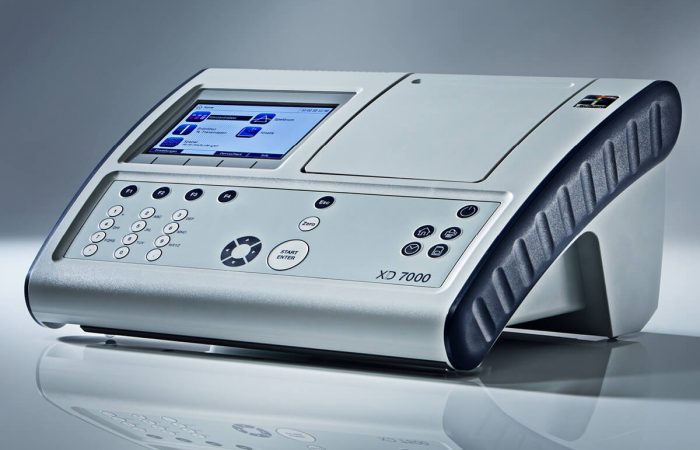

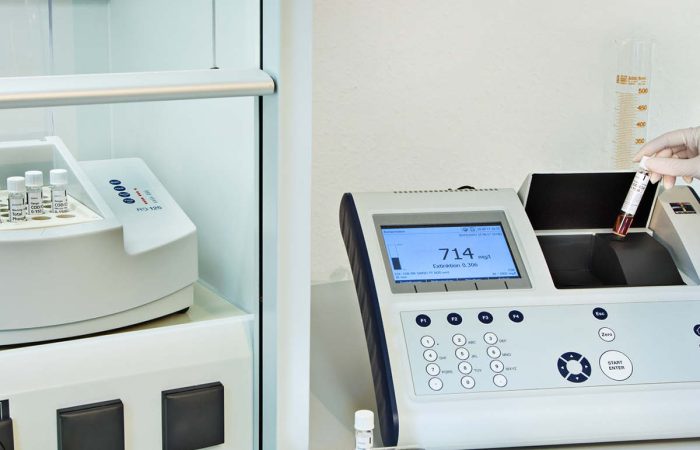

The Tintometer® Group has a decade-long heritage of standing for in-house produced high quality reagents and instruments. With the XD series, the portfolio is supplemented by an equally first-class spectrophotometer that fulfills even the highest demands in water analysis. The Lovibond® UV-VIS and VIS spectrophotometers XD7500 and XD7000 combine the latest reference beam technology with high user-friendliness and flexibility.
What is a Spectrophotometer?
A spectrophotometer is an advanced scientific instrument used to measure the amount of light absorbed by a sample at specific wavelengths. In the context of water analysis, spectrophotometers are crucial tools for assessing water quality by detecting and quantifying various contaminants, pollutants, and chemical substances present in water.
How Does the Spectrophotometer Work?

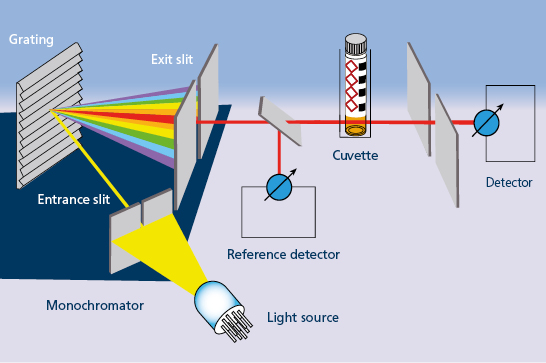

The light emitted by the light source falls through the entrance slit on the monochromator and is deflected by the grating situated towards the exit slit. This mechanism, enables the selected wavelength to be accurately reproduced.
The semi-transparent mirror deflects the reference beam while allowing the light beam to pass through to the sample in the cuvette. The photodiodes act as detectors and transmit these signals to the microprocessor. The result is calculated and issued as a value in the display. Spectrophotometer's working principle is based on Lambert-Beer’s Law—don’t worry, it’s simpler than it sounds! Let’s take a quick look at what it actually means.
Lambert Beer's Law:
Lambert-Beer’s Law—describes the relationship between the light absorption, path length, and the concentration of a substance in a solution. When light passes through a solution, some of it is absorbed depending on how much of the substance is present: the higher the concentration, the more light is absorbed. The formula is:
A=ε⋅c⋅l, Where:
A = absorbance (no units)
ε = molar absorptivity (L·mol⁻¹·cm⁻¹)
c = concentration (mol/L)
l = path length (cm)
This principle is essential in analytical instruments like photometers and spectrophotometers, ensuring accurate measurements across various fields.
Why Prefer a Spectrophotometer for Water Analysis?
For comprehensive, repeatable, and accurate water testing, spectrophotometers are an ideal choice. They are preferred for the following reasons:
- Broad Wavelength Range: Detects a wide spectrum of contaminants, from UV to visible light.
- High Sensitivity: Detects even low concentrations of pollutants, perfect for environmental and regulatory testing.
- Accurate, Repeatable Results: Delivers consistent data with minimal error.
- Ease of Use: User-friendly interface, suitable for both experts and beginners.
Industries Benefiting from Spectrophotometers for Water Analysis
- Environmental Monitoring

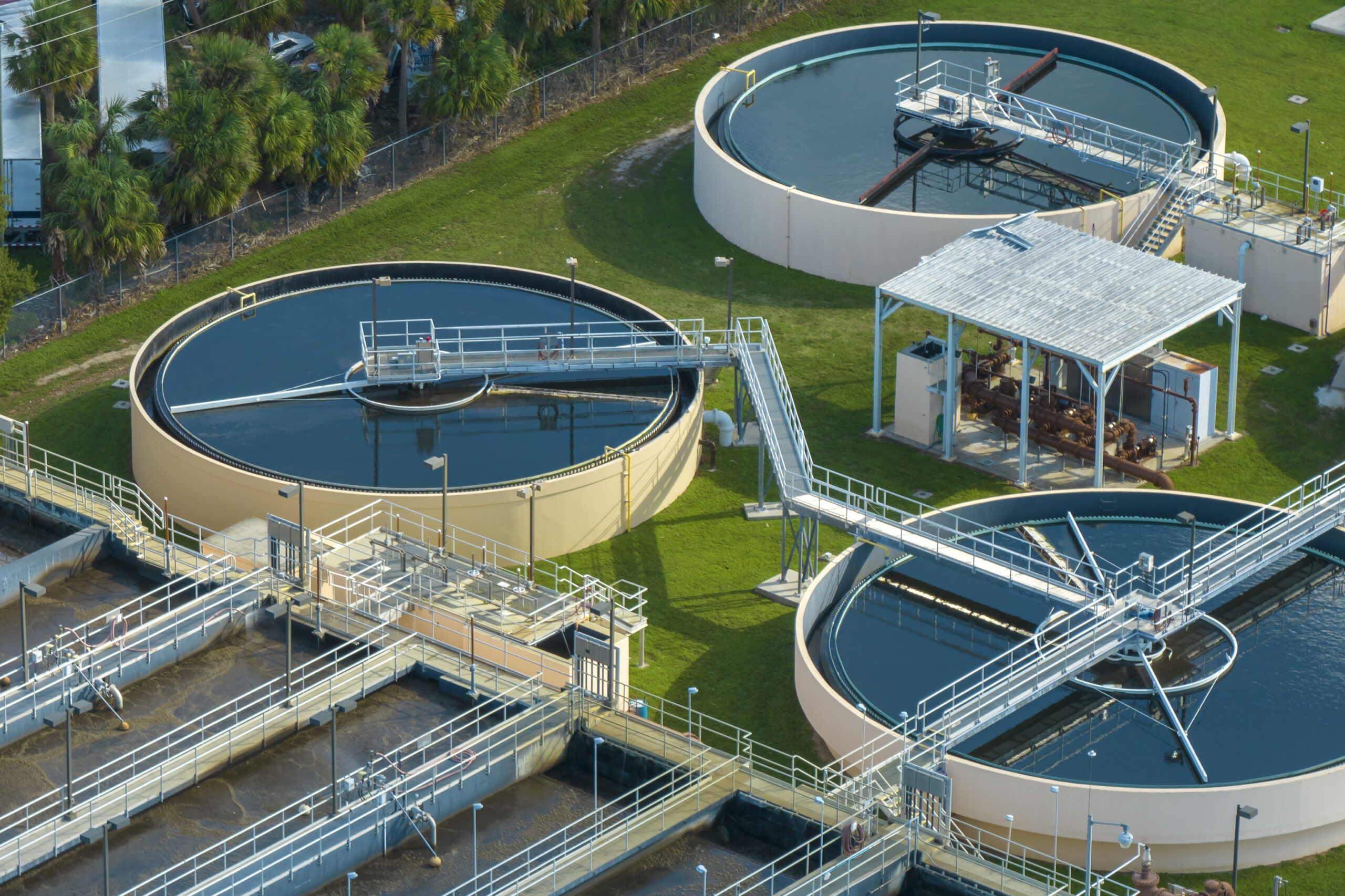

- Waste Water Treatment
- Drinking Water
- Industrial Water
- Aquaculture, etc.
Why Choose the Lovibond® Spectrophotometers?

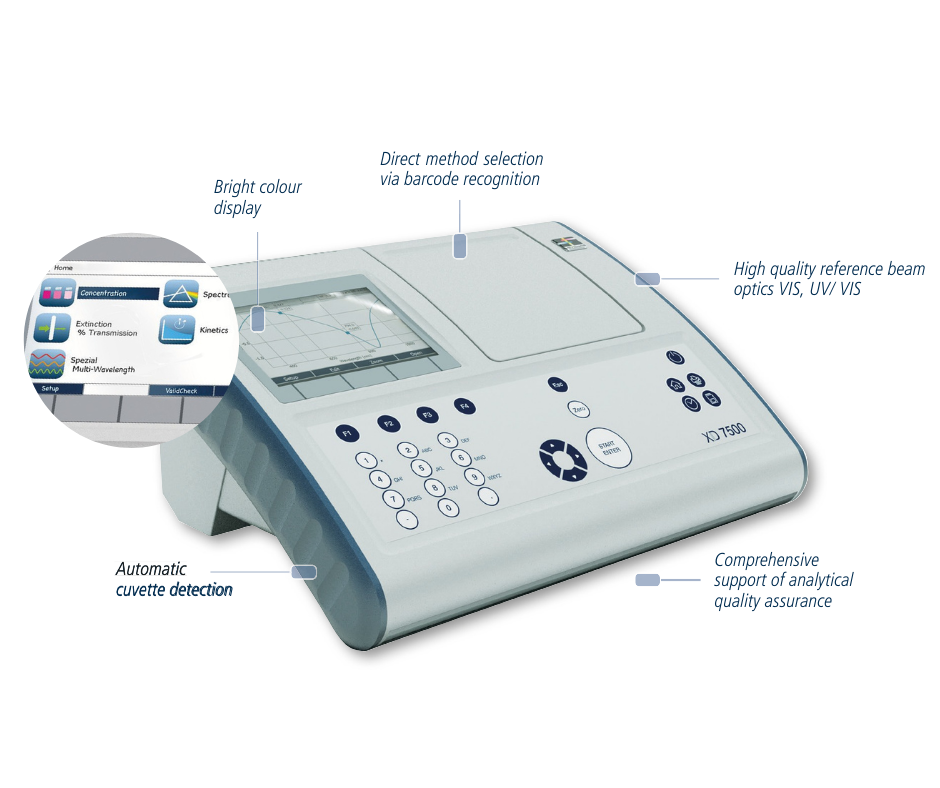

The Lovibond® Spectrophotometers are your go-to solution for precise, reliable water quality testing. The user not only gets uncomplicated equipment for the working area at all times but also benefits from expertise in after-sales service. Here's why:
You’ll have access to over 165 preprogrammed methods, based on trusted Lovibond® reagents — so you can start testing right away.
Want to customize your analysis? You can create your own methods easily.

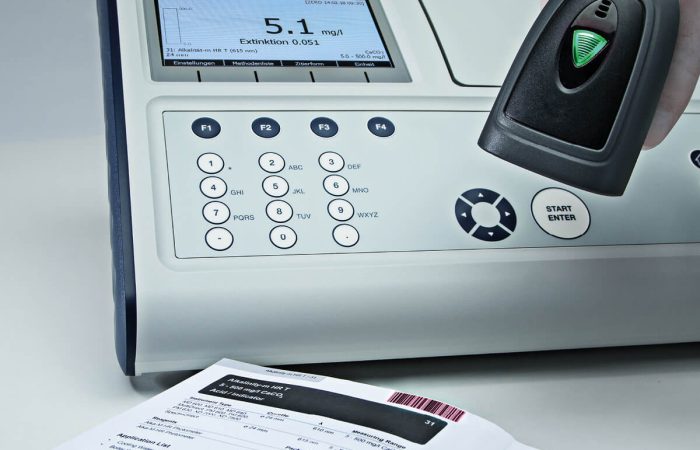

Choosing the right test is simple. Just scan a barcoded cuvette, and the system takes you straight to the right method.

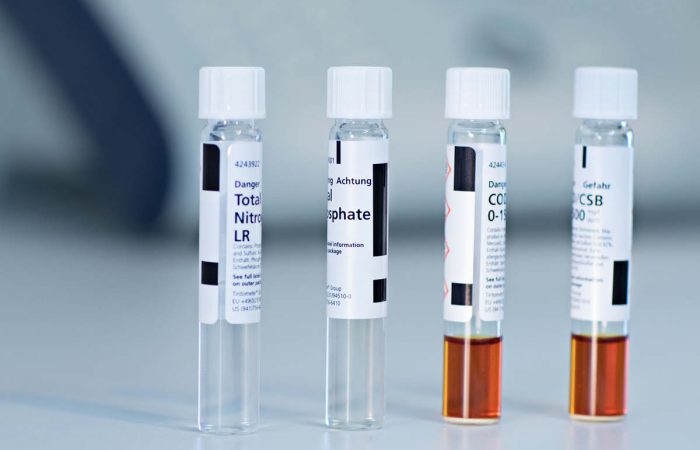

- A variety of cuvette sizes can be used: 16 mm and 24 mm round cuvettes, or 10 mm, 20 mm, and 50 mm rectangular cuvettes — without changing any adapters.
The spectrophotometer automatically recognizes every cuvette, so you don’t need to manually select anything. It’s smooth and error-free.
When it comes to updates, you’re always up to date. Download the latest software, methods, languages, and features straight from our website — no registration needed.
Want control over your data? You can protect your results with password access, ensuring everything stays secure
What is the difference between Vis and UV-Vis Spectrophotometers?
A Visible (Vis) spectrophotometer operates in the wavelength range of 320 to 1100 nm, while a UV-Visible (UV-Vis) spectrophotometer covers a broader range from 190 to 1100 nm. The UV-Vis spectrophotometer is generally preferred for specific analyses that require measurements in the ultraviolet range, such as determining nitrate concentrations in drinking water according to APHA Standard Methods and measuring ADMI color values in samples (when the values extend up to 1200 Pt-Co units).

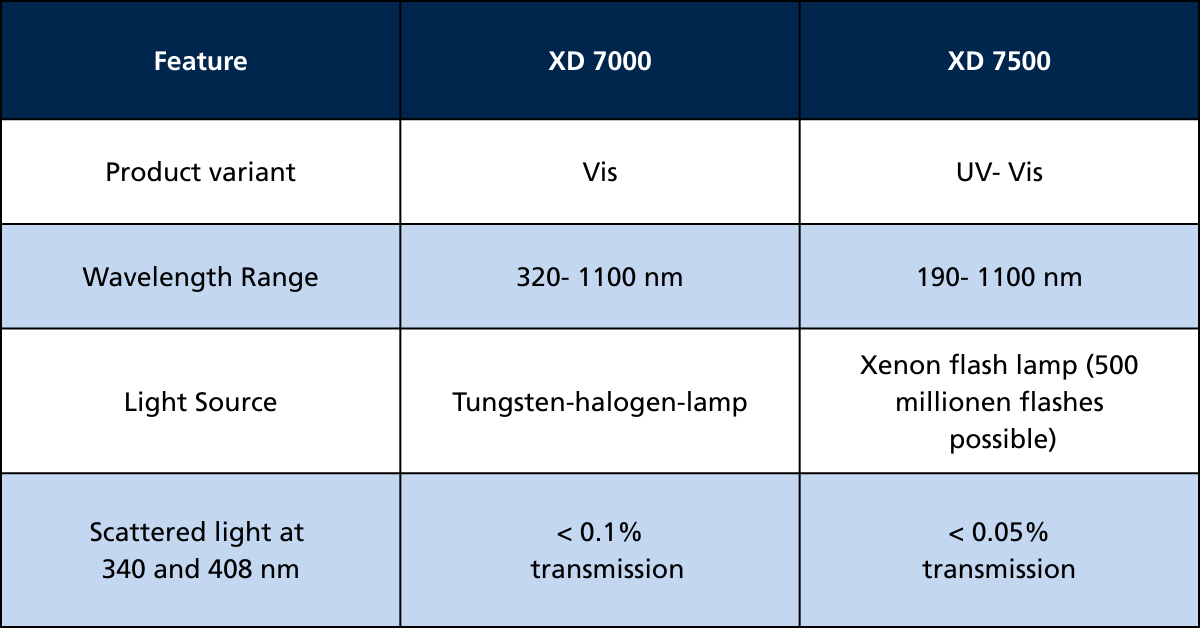

XD 7000 or XD 7500? The main differences between the XD 7000 and XD 7500 are listed in the table provided. Take a moment to explore the features and choose the instrument.
Click the button to explore the details of our spectrophotometers!
Standard work with weight: All Lovibond® Handbook of methods
Wherever you want to control the quality of water in the world and whoever is searching for the perfect testing method: We have the 900 real and digital pages which contain all you need. The new Lovibond® Handbook of Methods comprises the currently existing 155 Lovibond® methods and explains them.
The additional advantage: Each method contains a barcode which starts the test recognition automatically. The first instrument which maintains this user-friendly operating concept are the Spectrophotometers XD 7000 and XD 7500.
Click below to download the Lovibond® Handbook of Methods now!
Lovibond® Reagents:
Still have questions? Drop your details below for FREE technical guidance!
FAQs – We Know What You’re Thinking! You Ask, We Answer!
How is a spectrophotometer different from a photometer?
The key difference between photometers and spectrophotometers lies in how they use light to measure the concentration of substances in a water sample. Both instruments work by measuring how much light is absorbed by the sample at specific wavelengths, as different substances absorb light uniquely across the spectrum.
Photometers measure light absorbance using interference filters at fixed wavelength, making them suitable for detecting specific concentration of parameters. Spectrophotometers, however, can scan across a wide range of wavelengths in the UV-Visible spectrum. This allows them to identify and wider range of concentration of parameters in a sample, providing more detailed analysis.
Do we need to zero the instrument with a blank sample or with air?
Different parameters require different methods, and each method has its own specific zeroing procedure. To ensure accuracy, refer to the Lovibond® Handbook of Methods, where the correct zeroing instructions are provided within each parameter.
I am using a spectrophotometer of another brand. Can the Lovibond® Handbook of Methods still be helpful?
Yes! Absolutely! Even if you're using a spectrophotometer from another brand, the Lovibond® Handbook of Methods can still be useful. It comprises perfect water testing methods and explains them in 10 different languages. Also, it describes each method in detail, with step-by-step pictorial instructions. The handbook also covers the basics of water analysis, provides references to relevant sources and norms, suitable reagents, and explanations of potential interferences. This handbook can become your go-to reference for reliable and accurate water testing.
Is a spectral bandwidth of 1 nm suitable for water testing?
While 1 nm provides extremely high precision, it is not necessary for water testing. Most water treatment applications don’t require this level of detail and can function effectively with the more than 1 nm spectral bandwidth.
In what cases should a spectral bandwidth of 1 nm be used for measurements?
The 1 nm measurement is ultra-precise and is required mainly in industries like life and biosciences.
Why is there an issue with the self test in my Lovibond® Spectrophotometer?
The self test may fail due to several reason. We suggest you to contact us via WhatsApp or click the button below to send an enquiry:
Why do I see ‘Please remove the cell’ on the screen of my Lovibond® spectrophotometer?
The possible causes for this might be because of the failure of the cell detector or failure of the monochromator. via WhatsApp or click the button below to send an enquiry:
